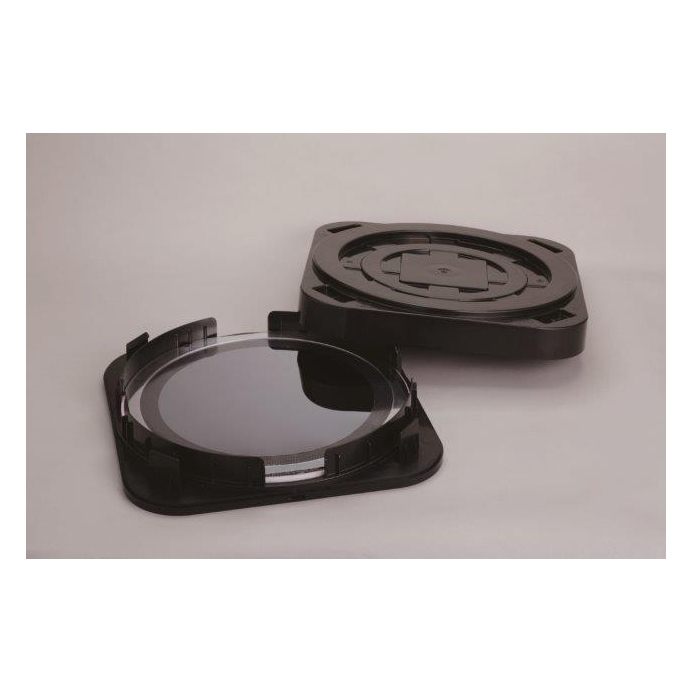

Wafer Carrier for Film Frame

型號:ND-6/8/12
Product Numbe  •ND-6N (For 6inch wafer mounted on dicing frames)
 •ND-8 (For 8inch wafer mounted on dicing frames)
 •NDM-12 (For 12inch wafer mounted on dicing frames)
Feature  •Compact design can reduce transportation costs.
 •Dicing wafers can be stored with a tape frame.
 •Light weight when used with Protos Frames. (Sold separately)
 •Conforms to ANSI / ESD S541.
Surface Resistance   (ND-6N,ND-8) R < 10^6Ω
 (NDM-12) 10^4Ω < R < 10^9Ω
Material  Conductive PP

Specification

Product Number Wafer Diameter Container
height
Height 0f storage Stored wafer diameter Container
width/length
Weight
ND-6N  6 inch wafer mounted on   dicing frame 81mm 40mm 230±1mm 252mm 0.72kg
ND-8  8 inch wafer mounted on   dicing frame 92mm 57mm 299±1mm 322mm 1.19kg
NDM-12  12 inch wafer mounted on   dicing frame 72mm 34mm 402+1/-1.5mm 430mm 1.88kg

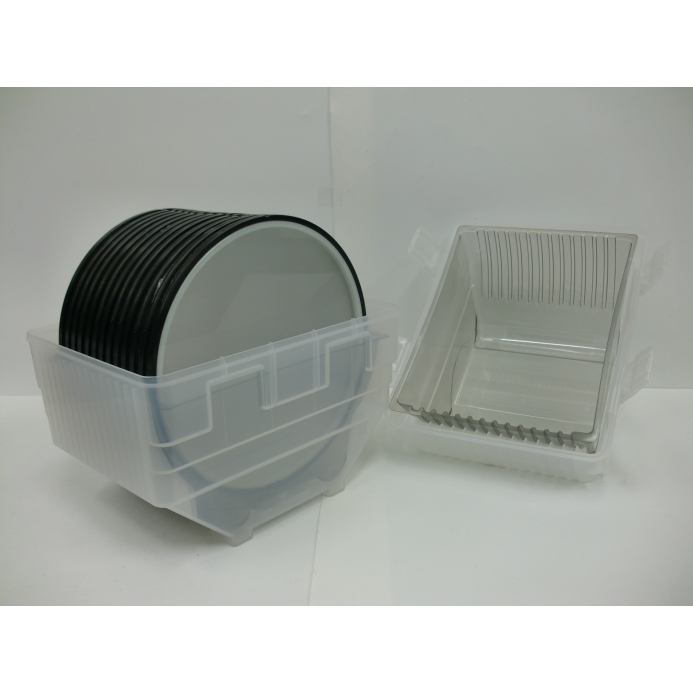

Film Frame Shipper(FFS) ND-6N,ND-8

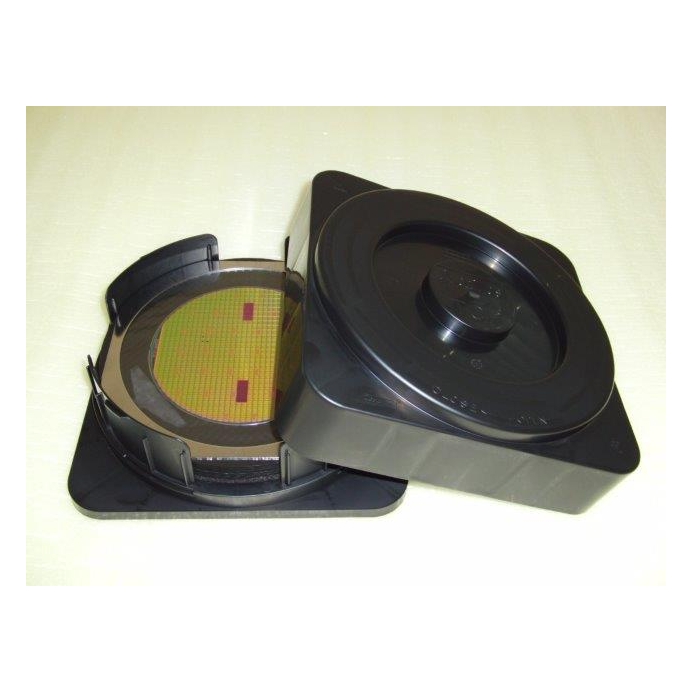

Film Frame Shipper(FFS) NDM-12

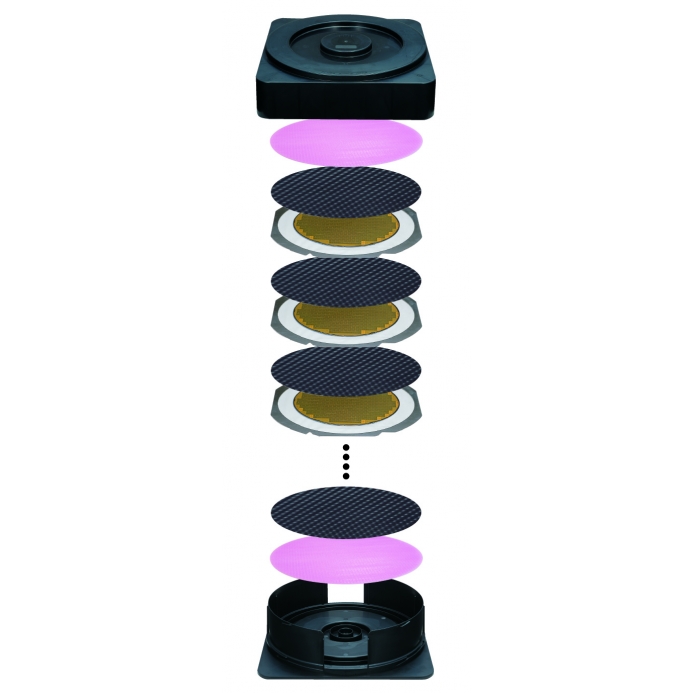

Recommended cushion & interleaf

Product Number performance cushion interleaf
ND-6N antistatic MA-9PEAS-□ PEA-9-350(Z1)
conductive MA-9PESD-■ CPS-9-350(Z2)
ND-8 antistatic MA-295PEAS-□ PEA-295-350(Z1)
conductive MA-295PESD-■ CPS-295-350(Z2)
NDM-12 antistatic MA-16PEAS-□ PEA-16-350(Z1)
conductive MA-16PESD-■ CPS-16-350(Z2)

*□:1/3/5/6/10 (=thickness [unit:mm])
*■:1/3/5/10 (=thickness [unit:mm])
