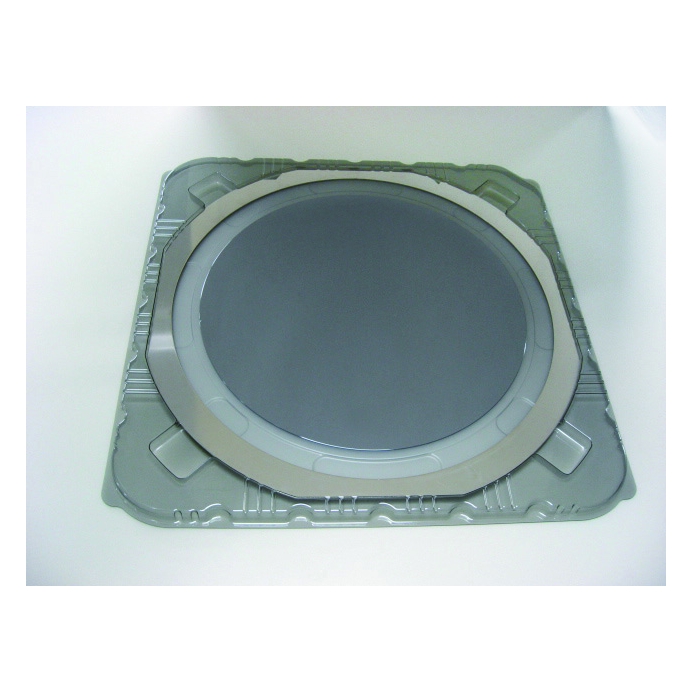

| Part Number | VFP-6R-90FG (For 6inch wafer mounted on dicing frame) VFP-ND-8R-90 (For 8inch wafer mounted on dicing frame) VFP-ND-12R-90 (For 12inch wafer mounted on dicing frame) |
|---|---|
| Feature | •Single wafers with a tape frame can be transported. •Because wafers are held with a frame, there is no contact with them. •Uses a clean conductive material (conductive polymer). •Optimal for transporting test production wafers. |
| Surface Resistance | < 1.0×107Ω |
| Material | Conductive A-PET |
Specification
| Product No. | Wafer Diameter | Container width/length |
Weight |
|---|---|---|---|
| VFP-6R-90FGA | 6inch(150ｍｍ)wafer mounted on dicing frames |
250ｍｍ | 0.17kg |
| VFP-ND-8R-90CA | 8inch(200ｍｍ)wafer mounted on dicing frames |
320ｍｍ | 0.28kg |
| VFP-ND-12R-90 | 12inch(300ｍｍ)wafer mounted on dicing frames |
420ｍｍ | 0.42kg |
Packaging dimensions
